TV Wall & Media Wall Installation in Alameda
Available in Alameda Today

TV Wall & Media Wall Installation in Alameda

Your Alameda living room, transformed. Every panel flush, every cable hidden, every connection verified before we leave.

Get a Free Quote in 5 Minutes

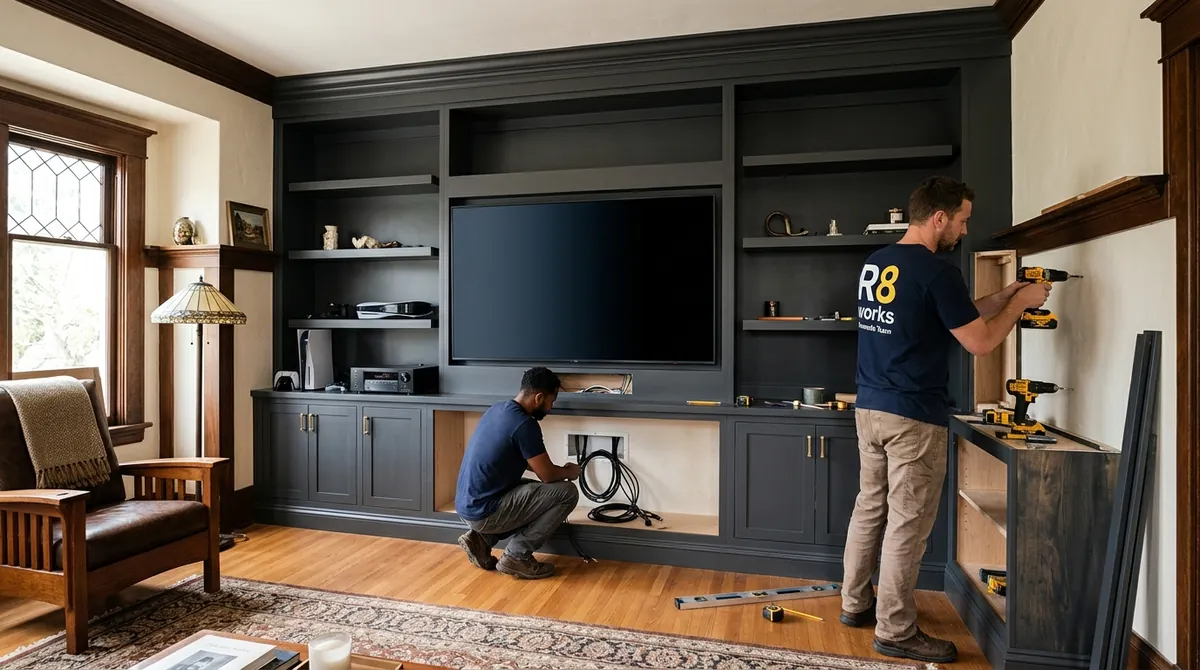

Media wall installation in Alameda — two R8Works Alameda Team technicians building a custom floor-to-ceiling media wall unit in a Victorian home with original plaster walls
Carpentry + AV, One Crew
Licensed, Vetted, Background Checked

Why hire us?

Heat Gets Somewhere To Go

A TV boxed into a sealed cavity cooks itself and voids the warranty. We build in a vented chase above the set - and keep the required clearance when a fireplace sits below it.

Backing Behind the Mount

Studs almost never line up with the centre of your TV. We add solid blocking across the framing first, so the bracket lands on wood instead of drywall anchors.

Cables That Still Reach

A stiff HDMI pressed against a back panel bends, loosens, and drops signal months later. We leave real depth behind the screen and use low-profile connectors and in-wall rated cable.

Power Done to Code

Running an extension cord inside a wall is a code violation, not a shortcut. We fit a recessed power kit and keep line voltage separated from your low-voltage runs.

Services Included & Excluded

Complete transparency on what our service covers.

✓ Included

  • On-site measure and design layout before any build
  • Framing the wall or false wall (wood or metal stud)
  • Solid blocking behind the mount location
  • Vented chase above the screen so heat escapes
  • In-wall rated cable routing for HDMI, network and speakers
  • Recessed power kit and in-wall receptacle
  • Drywall, tape, and finish ready for paint
  • Mounting the TV, soundbar and shelving
  • Cable dressing and device testing
  • Full debris removal and cleanup

✕ Excluded

  • × Painting or wallpapering the finished wall (Add-on)
  • × Stone, tile or slat wall cladding (Add-on)
  • × Electric fireplace insert - supply and fit (Add-on)
  • × Floating shelves and millwork in hardwood (Add-on)
  • × Supplying the TV, soundbar or AV equipment
  • × New circuits, sub-panels or breaker work - licensed electrician required
  • × Moving gas lines or venting for a gas fireplace
  • × Structural changes to a load-bearing wall - requires permit and engineer
  • × Asbestos or lead paint remediation in older homes

How it works

Four steps, and you can stop after any of them.

  1. 1

    Tell us about the job

    A few questions online. No phone call, no credit card, nothing to sign.

    about 2 minutes
  2. 2

    Get your exact price

    We read your answers and photos, then text you a firm figure — not an estimate to be revised on the day.

    within 5 minutes
  3. 3

    Pick a time that suits you

    Same day is often available. You are not committed to anything until you choose one.

    you decide
  4. 4

    A vetted pro handles your TV/Media Wall Installation

    They arrive with the right tools, do the work, and clear up before they leave.

    the price you agreed
Enterprise B2B Solutions

Trade Partner Program — Alameda

For commercial architects, property managers, and HOA boards managing newer developments like those in Bay Farm Island or commercial spaces in Alameda Landing, a multi-display media wall installation requires more than just heavy lifting. It demands strict adherence to fire-block regulations, precise metal-stud anchor weight calculations, and risk-free cable routing. Our enterprise-grade installations provide a fully documented, code-compliant finish that protects your building's infrastructure. We deliver reliable, perfectly aligned, and aesthetically flawless media walls that enhance your commercial property's ROI without the risk of future anchor failure.

Certified
Vetted Pros
Commercial
Grade Mounting
Commercial media wall installation in Alameda — an R8Works technician installing a multi-display media wall in an Alameda Landing office space while a property manager reviews the specs
Accepting New Partners

Technical Challenges in Alameda

In the pre-war blocks off Gold Coast, the crew hits the same wall every time — cream plaster over lath strips, no consistent stud spacing, and a homeowner who has already picked out exactly where the media console will sit. That precision matters. A standard toggle bolt rates fine on drywall spec sheets; under the combined load of a built-in media wall — AV receiver, gaming shelf, 75-inch panel — it works loose in under a year. Out on Bay Farm Island, the newer builds look easier until you hit the metal-framed party walls where a wood-stud anchor schedule does not apply. In Alameda, we run a Zircon MetalliScanner before the first pilot hole goes in — it reads through plaster, catches the steel reinforcements some 1940s-era homes added, and tells us exactly what the wall can carry before we ask it to carry anything. The result is a media wall that stays flush, stays square, and looks exactly how you imagined it from the start.

People call this different things — a TV wall, a built-in entertainment center, a custom media wall, a recessed TV wall. It is the same job in Alameda: we frame it, run the cable inside it, and finish it so the screen sits flush and nothing shows.

Why Alameda Walls Demand a Different Approach

A media wall is not a TV bracket scaled up. The combined weight of a built-in console frame, AV equipment shelf, and a large-format panel pushes 90 to 120 lbs of static load — before the floor vibrates when someone walks past. On the Gold Coast and East End, that load lands on lath-and-horsehair plaster that can test solid on the surface and hollow two inches behind it in the same 12-inch span. The Zircon MetalliScanner i520 reads what a standard stud finder cannot: wood lath strips behind the plaster face, steel reinforcements added in 1940s renovations, and the difference between a structural hit and a false positive on a pipe chase.

The Anchor Problem Nobody Talks About

Standard plastic expansion anchors are rated for drywall cores. Alameda's older plaster is a different material — dense at the surface, softer toward the lath behind it, and sensitive to humidity from the bay. A single-point anchor that passes a 48-hour pull test can work loose over months as the plaster breathes with the marine layer. We use TOGGLER SNAPTOGGLE BA zinc toggle bolts, rated at 265 lbs per point in shear on 1-inch plaster. Four anchors on a media console give you over a thousand pounds of rated capacity — the wall outlasts the equipment. For single-screen setups without the cabinetry, TV Mounting covers the same anchor discipline at a simpler scope.

In-Wall Wiring and Bay Farm Island HOA Requirements

Bay Farm Island condos frequently require written HOA approval before any in-wall cable run crosses a fire-block. The City of Alameda Building Division issues the permit when one is required; we document the scope, pull the paperwork, and close the wall to a finish the HOA can photograph for its records. The Klein Tools ET300 fiberglass routing kit threads around fire-blocks inside older framing cavities without opening the face of the wall — one clean outlet plate at the top, one at the bottom, zero surface conduit.

TV & Media Wall Experts — On Your Terms

Not every media wall project needs a full crew from day one. If you're still in the planning stage — figuring out wall placement, cabinet depth, or which cable runs make sense for your room — reach out for a free site walk. We'll tell you what the wall can actually hold, where the load points are, and whether an in-wall power run is worth the effort in your specific layout. If you decide to handle it from there yourself, that's a reasonable call. And if you get to the anchor stage on a Gold Coast plaster wall and want a crew that has done this before, or a friend in nearby areas is dealing with the same built-in question, our local team is available the same day — no minimum scope, no upsell. Just a straight answer about what the job actually needs.

265 lbs
Per-Point Anchor Rating
5★
Rated in Alameda
Same-Day
Availability

Customer Reviews
5 (91 reviews)

Lucas W

Our property manager is very strict about modifications. The team provided all the necessary paperwork and followed the rules to the letter. Very professional.

Wyatt Fletcher

Bay Farm Island condo owner here. The metal framing in our unit makes DIY projects a nightmare. These guys came in, mapped the wall, and had the floating shelf and TV up in just a couple of hours.

Ezra Cole

Our property manager is strict, but the team provided all the code-compliant paperwork upfront. The installation was quick and they followed all the rules. Very professional.

Ethan P

I was worried my floating shelf couldn't hold my heavy AV equipment. The technician did a load assessment and used specialized anchors for our plaster. It's solid as a rock.

Henry M. Sterling

Our property manager is strict, but the team provided all the necessary paperwork and followed the rules perfectly. Very professional installation.

Frequently Asked Questions

Yes. Since the plaster in Gold Coast and East End homes is often unpredictable, we use a Zircon MetalliScanner to map the wall before drilling. We secure the media console and TV using toggle bolts rated for 265 lbs in shear, ensuring the load is safely distributed across the back of the plaster rather than relying on surface friction.
We do. Since many Bay Farm Island HOAs have strict rules regarding fire-blocks and interior wall modifications, we use specialized flexible routing kits to run HDMI and power cables inside the wall cavities without opening up the drywall face, keeping the finish clean and HOA-compliant.
It can affect standard plastic drywall anchors. Since the marine layer keeps indoor humidity relatively high, older plaster can sometimes soften at its core. We mitigate this by using high-grade mechanical anchors that clamp behind the wall material entirely, completely bypassing the risks associated with moisture-softened plaster.
Yes, we handle the full media wall scope. Since proper alignment between the recessed TV mount, the built-in cabinet frames, and the AV equipment shelves requires extreme precision, our technicians install both the custom millwork panels and the display brackets as one integrated system.
